Class 150~900 Sleeve Type Soft Sealing Plug Valve
Class 150~900 Sleeve Type Soft Sealing Plug Valve
Product Description

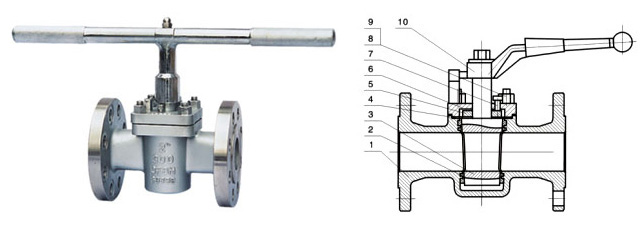

Class 150~900 Sleeve Type Soft Sealing plug valve



Bolt cover,plug 90 degree around.
Its sealing is realized by the sealing face around the sleeve.It has unique 360 degree metal edge for protection and fixing of the sleeve.There is no cavity in the valve for accumulation of medium.Metal edge provides the function of self-cleaning when the plug is rotated,applicable to the operation condition thatis glutinous and apt to smudge.Double direction.

Standards compliance
Design and Manufacture: API 599,API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Test and inspection: API 598,API 6D

Standard Material Specifications

NO.
Part name
Material
A216 WCB
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
1
Body
A216 WCB
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
2
Sleevd
PTFE/RPTFE
3
Plug
A182 F6a
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
4
Gasket
Flexible graphite+stainless steel PTFE
5
Adjusting gasket
A182 F6a
A182 F304
A182 F316
A182 F304L
A182 F316L
6
Cover
A216 WCB
A351 CF8
A351 CF8
A351 CF3
A351 CF3M
7
Adjusting bolt
A193 B7
A193 B8
A193 B8M
A193 B8M
A193 B8M
8~9
Bolt/nut
B7/2H
B8/8
B8M/8M
B8M/8M
B8M/8M
10
Wrench
ASTM A105/A216 WCB


Dimensions(mm) and Weights(Kg)

Class 150Lb
Size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF
mm
108
117
127
140
165
178
190
203
229
254
267
292
330
356
381
H
mm
110
115
115
135
140
150
165
180
380
460
520
580
620
680
760
W
mm
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight
Kg
8.5
9.5
10.5
12
14
18
22
26
40
60
70
130
219
381
570



Class 300Lb
Size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF,BW
mm
140
152
165
178
190
216
241
283
305
381
403
419
457
502
762
H
mm
110
115
115
135
140
150
165
180
380
460
520
580
620
680
760
W
mm
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight
Kg
9.5
10.5
12
14
16
20
24
29
53
75
85
185
230
390
550



Class 600Lb
Size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF,BW
mm
165
190
216
229
241
292
330
356
432
508
559
660
787
838
889
H
mm
110
115
115
135
140
150
165
180
380
460
520
580
620
680
760
W
mm
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight
Kg
11
13
17
20
23
27
31
36
72
98
141
245
330
515
710



Class 900Lb
Size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF
mm
229
229
254
279
305
368
419
381
457
559
610
737
838
965
1029
H
mm
110
115
115
135
140
150
165
180
380
460
520
580
620
680
760
W
mm
175
175
175
220
280
305
350
405
300
300
320
320
350
380
450
Weight
Kg
13
16
21
24
28
32
40
47
91
117
165
285
420
610
860
