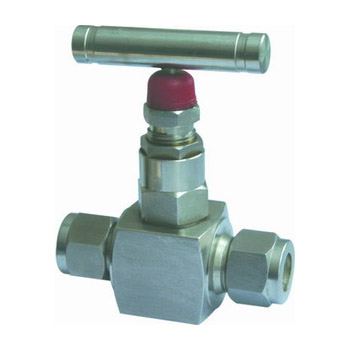

Male Thread Needle Valve
Male Thread Needle Valve
Product Description


Nominal Pressure: PN2.5 PN4 PN6.4 PN16 PN32Mpa
Nominal Bore: DN5~DN25
Applicable medium: Oil, water, gas etc the non-corrosive or corrosive medium
Applicable Temperature: -20~+440, -70~-240; 540, 570 degree
Materials: 20#1Cr18Ni9Ti304316316L12Cr1MOV
Connection type: The welding connection mode, can be more effective keep pipeline firm, is not leaking

Male thread Needle Valve
Stainless steel needle valve is important part of instrument measuring pipeline system, mainly including globe valve and ball valve'>ball valve, its function is to make open or shut off pipeline with access.
Stainless steel needle valve sealing is good, long service life, even after sealing surface damage, also just only needs to replace wear parts, can continue to use.
When installation should make the medium flow direction is same direction of arrow on valve body.

Nominal
diameter (mm)
Dimensions
Do D1 D2 L H1 H2 M
6 65 14 6 140 96 106 20x1.5
10 80 18 10 160 115 125 24x1.5
15 100 22 15 180 122 132 30x2
20 110 28 18 220 156 166 36x2
25

140 33 22 230 169 180 39x2
