PN16~40 DIN Swing Check Valve F1 & F6 Series
PN16~40 DIN Swing Check Valve F1 & F6 Series

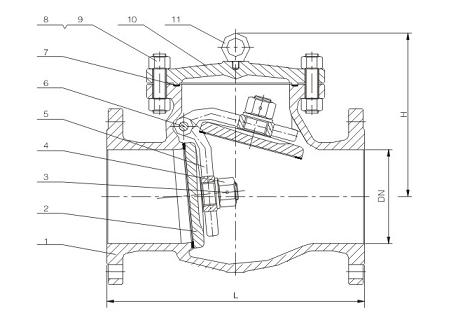

Product Description


PN16~40 DIN Swing ball valve F1 & F6

PN16~40, DN40~600
Design and manufacture: DIN3840
Face to face: DIN3202-F6, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’requirement.



Main Part Material

NO.

Part Name

Material

NO.

Part Name

Material

1

Body

GS-C25+13Cr

7

Gasket

Graphite

2

Disc

GS-C25+13Cr

8

Bolt

A193 B7

3

Pin

Carbon Steel

9

Nut

A194 2H

4

Nut

A194 2H

10

Bonnet

GS-C25

5

Hinge

GS-C25

11

Hook Screw

Carbon Steel

6

Pin

A182 F6








Dimensions (mm) And Weights (kg)

PN16

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

180

200

240

260

300

350

400

500

600

700

800

900

1100

1300

H

140

150

168

180

210

230

275

340

355

410

475

552

660

740

Weight(kg)

14

15

19

28

35

48

66

















PN25

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

180

200

240

260

300

350

400

500

600

700

800

900

1100

1300

H

140

150

168

180

210

230

275

340

355

410

475

552

660

740

Weight(kg)

14

15

19

29

38

52

70

















PN40

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

200

230

290

310

350

400

480

600

730

850

980

1100

1250

1450

H

140

155

172

185

215

235

285

350

360

425

490

565

680

760

Weight(kg)

14

15

20

32

42

58

80
