Class 800~1500 Bolt Type Swing Check Valve
Class 800~1500 Bolt Type Swing Check Valve
Product Description

Class 800~1500 Bolt Type Swing ball valve

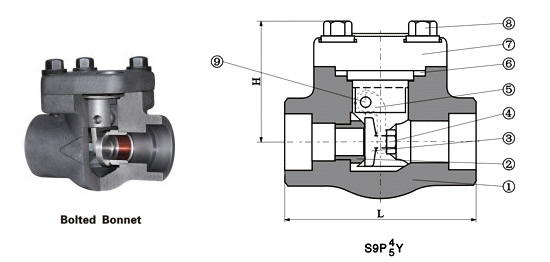

Standard Material Specifications

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 410 A276 304 A276 304(L) A276 316(L)
3 Swing Disc A276 420 A276 304 A276 304(L) A276 316(L)
4 Nut A194 2H A194 4 A194 8 A194 8M
5 Hinge A105 A182 F22 A182 F304 L A182 F316(L)
6 Pin A276 420 A182 F304 A182 F316
7 Pont levis A105 A182 F22 A182 F304 L A182 F316(L)
8 Gasket Corrugated SS + graphite SS + PTFE
9 Bonnet A105 A182 F22 A182 F304 L A182 F316(L)
10 Bolt A193 B7 A193 B16 A193 B8M A193 B8M
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃


Dimensions(mm) And Weights(kg)

NPS (in) 3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 800Lb 79 79 92 111 120 120 140
900~1500Lb 92 111 111 120 120 140 178
H 800Lb 61 61 78 84 101 120 133
900~1500Lb 79 79 79 97 105 120 140
Weights 800Lb 1.1 1.0 1.9 3.9 4.5 7.3 10.0
900~1500Lb 3.1 3.0 3.6 4.3 6.1 8.8 12.6
